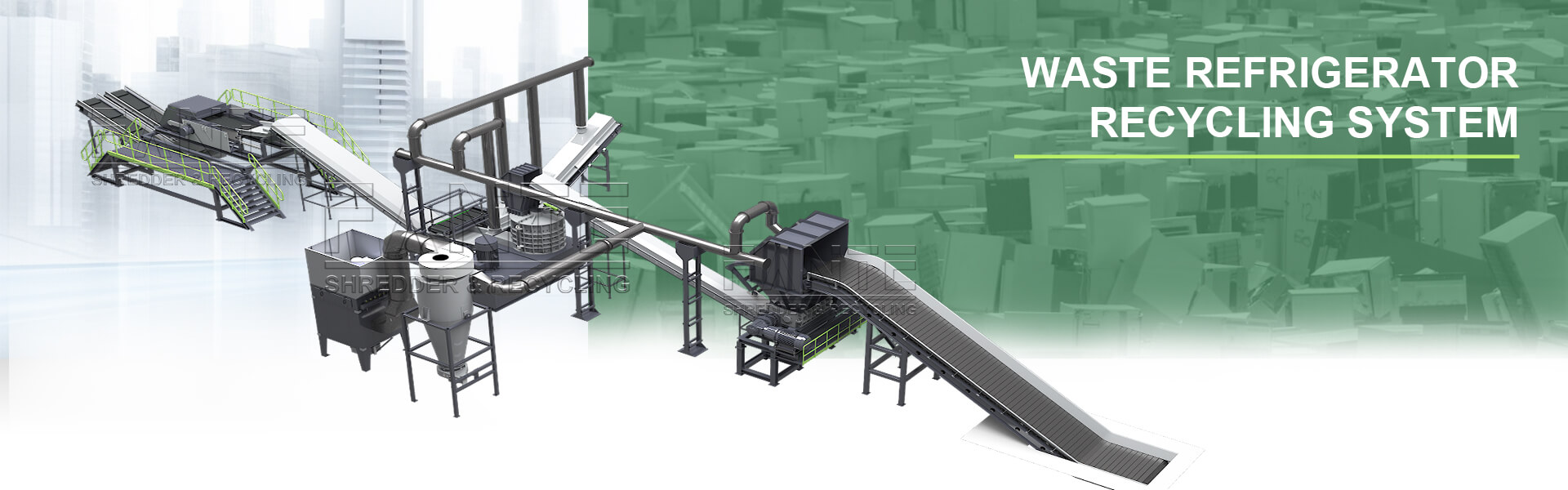

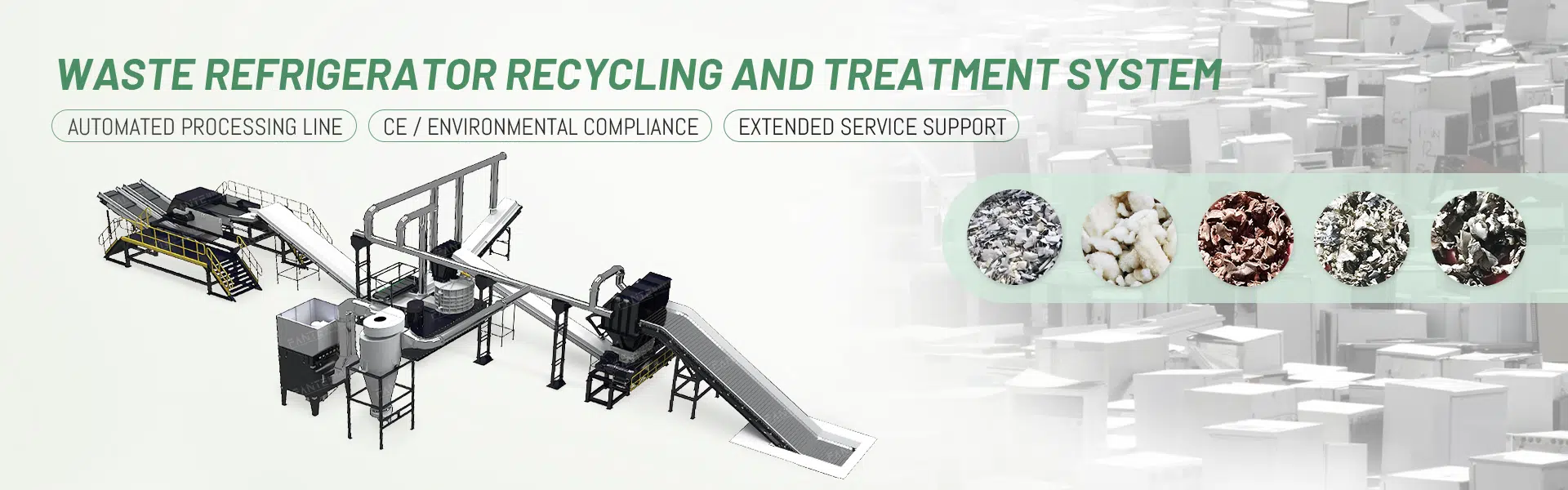

Waste Refrigerator Recycling System - Sustainable Resource Reuse Solution
SOLUTION BACKGROUND
The waste refrigerator recycling system is an environmentally friendly facility specially used to process and recycle waste refrigerators. This system uses a series of technologies and processes to classify and utilize hazardous substances, safe gases, recyclable materials, etc. in used refrigerators.
PROJECT INTRODUCTION
System Introduction
The waste refrigerator recycling system is a system specially designed to deal with waste refrigerators. It uses advanced technology and processes to effectively dismantle, separate and process used refrigerators to maximize the recovery of useful materials and safely dispose of harmful substances, thereby realizing the reuse and recycling of resources. The goal of this system is to reduce the negative impact of discarded refrigerators on the environment and promote the sustainable use of waste resources.

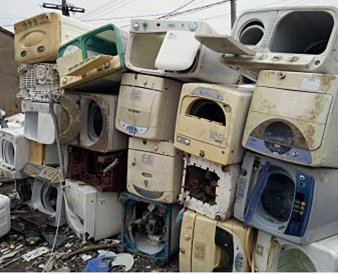

APPLICABLE MATERIALS
Refrigerator
Freezer
Washing Machine

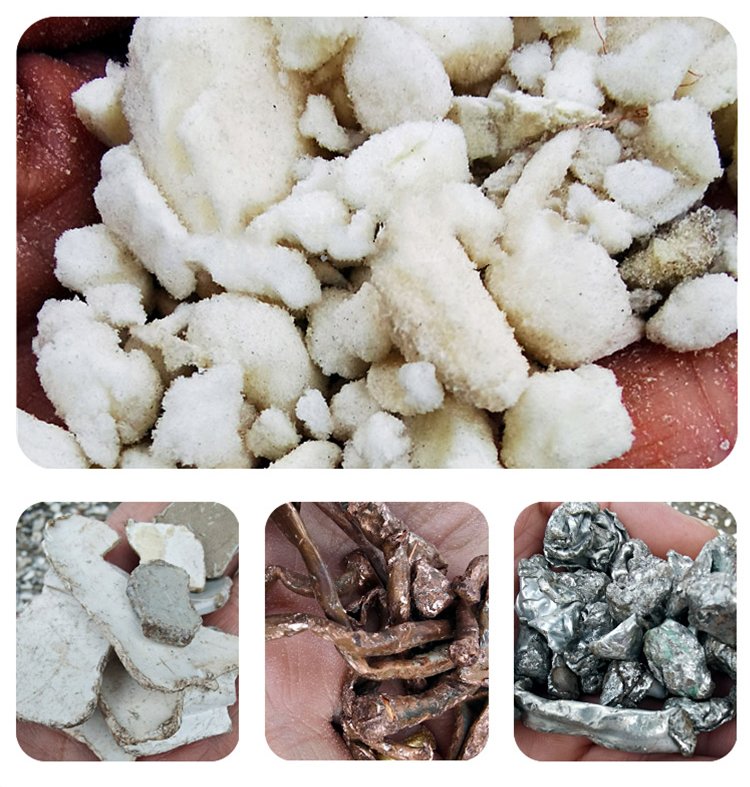

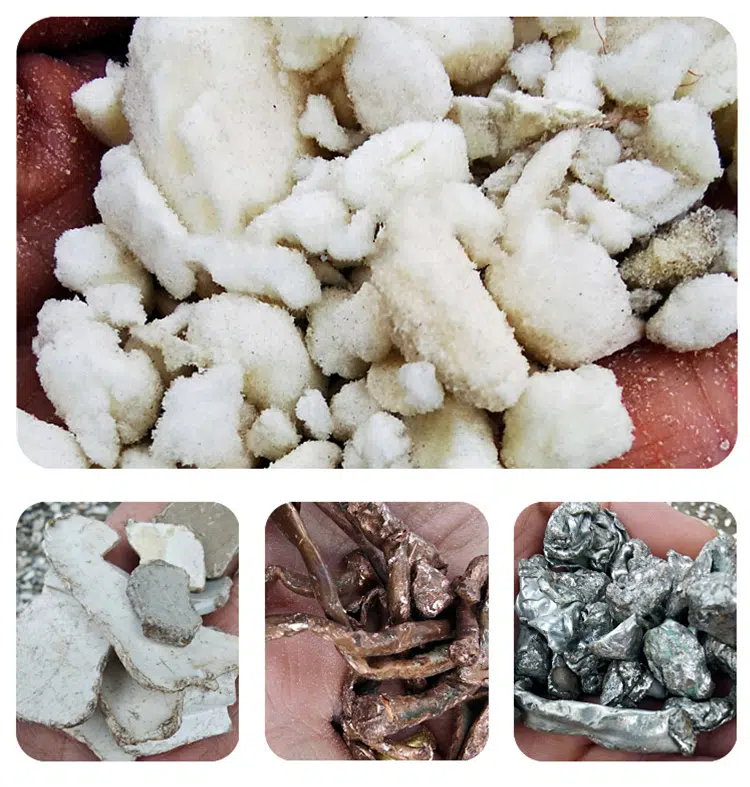

OUTPUT MATERIAL
DISPOSAL SOLUTION
FEATURES
Comprehensive Material Recovery
Designed to recover steel, copper, aluminum, plastics, and polyurethane foam from discarded refrigerators. Through shredding and multi-stage separation, the system enables efficient liberation and sorting of ferrous and non-ferrous materials for downstream recycling.
Safe Refrigerant & Oil Extraction
Equipped with dedicated extraction units to safely remove refrigerants and compressor oils before shredding. Proper degassing and collection processes help prevent atmospheric release of harmful substances and support compliance with environmental regulations.
Efficient Foam & Insulation Treatment
Polyurethane insulation foam is separated during crushing and processed through controlled airflow systems. Dust-tight designs and filtration units reduce airborne particles and help manage blowing agents contained within insulation materials.
Multi-Stage Metal Separation
After primary shredding, magnetic separators recover steel, while eddy current separators extract aluminum and copper fractions. Density-based and air classification systems further refine plastic and mixed materials to improve recycling efficiency.
Environmental & Workplace Protection
The system operates under negative pressure with integrated dust collection to limit emissions during dismantling and shredding. Proper containment and filtration support compliance with WEEE directives and industrial environmental standards.
Modular & Industrial-Scale Design
Available in configurations ranging from semi-automatic dismantling lines to fully integrated shredding systems. Modular architecture allows customization based on processing capacity, plant layout, and regional regulatory requirements.
MAIN EQUIPMENTS

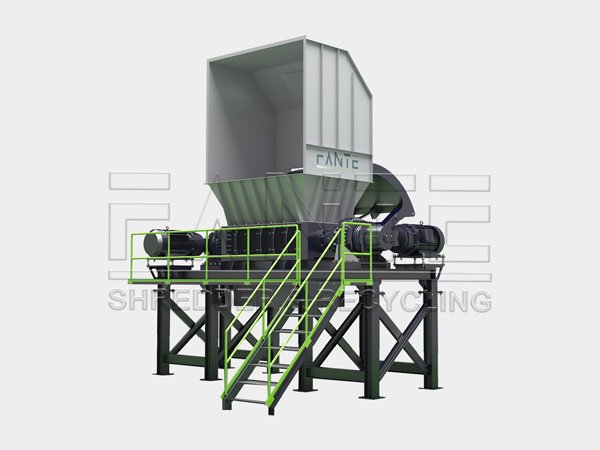

Shredder
Shredders utilize sharp blades to slice and reduce materials into smaller fragments, thereby improving the efficiency of recycling and waste management.

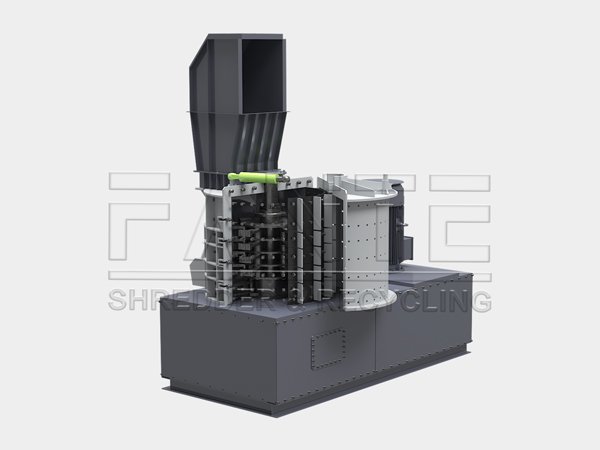

Vertical Hammer Crusher
Effectively crushes and compacts metal scrap, making it easier to recycle and reducing the required storage space.

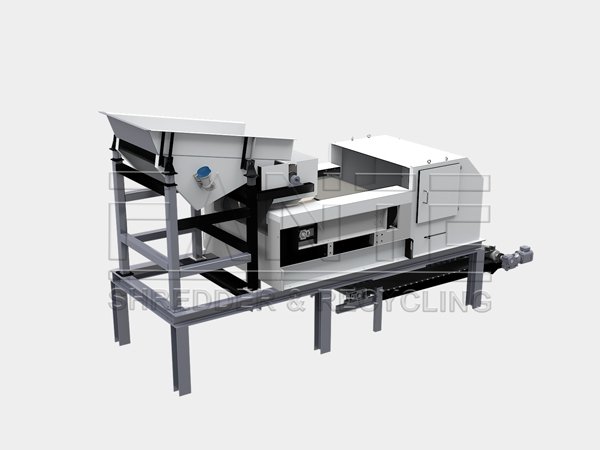

Eddy Current Separator
Accurately separates non-ferrous metals from waste streams, improving recycling efficiency.

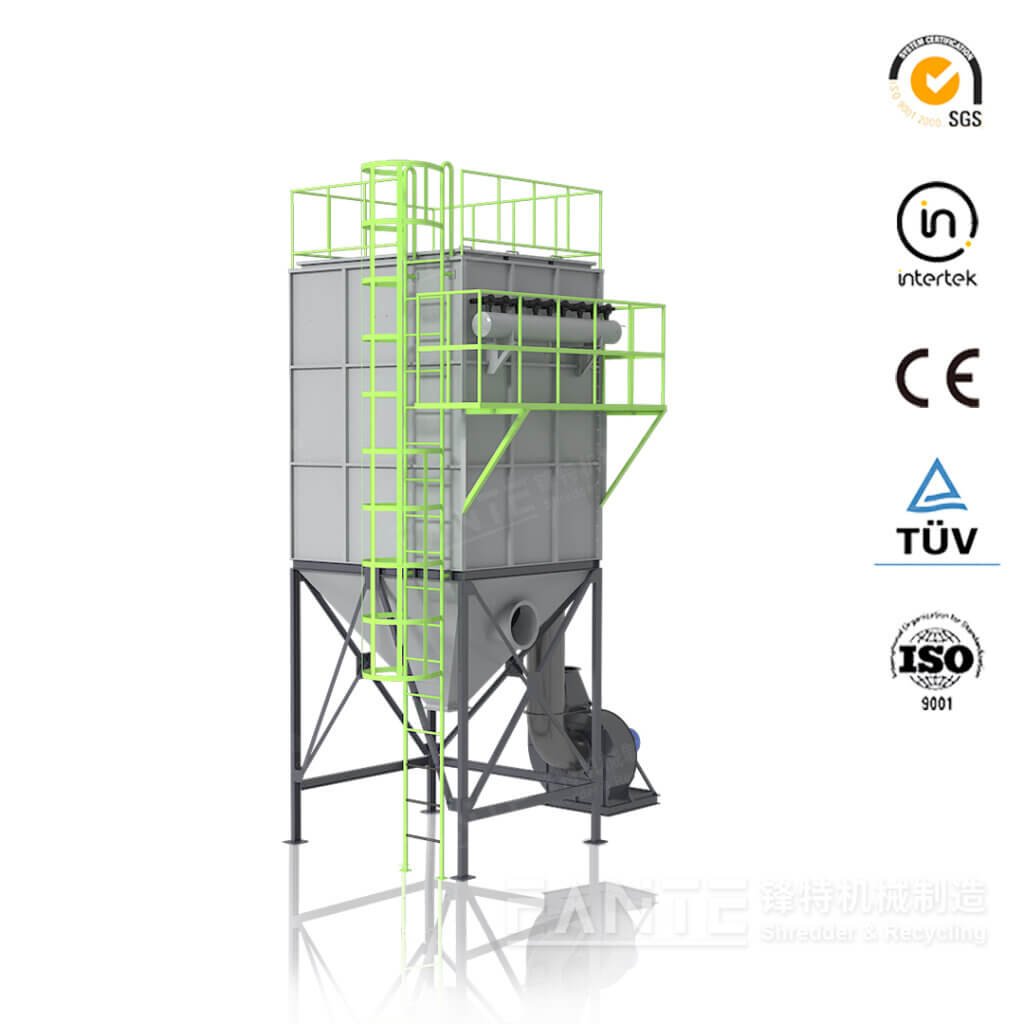

Pulse Dust Collector
Protect your workspace from airborne particles, maintaining clean and healthy air.
PERFORMANCE ADVANTAGE
Shredder
Shredders are typically engineered to handle a range of materials, including plastics, rubber, scrap metal, and cloth, by cutting, tearing, or shredding them into forms suitable for subsequent reprocessing or waste disposal. Shredders are categorized into various types, such as Metal Shredders, Plastic Shredders, and Fabric Shredders. Each type has distinct designs and functions tailored to the properties and processing requirements of different materials, enabling efficient processing to meet the demands of various industries.These shredders are efficient, precise, and versatile, playing a crucial role in waste processing and reuse. They are essential in areas like waste recycling, manufacturing, and resource reuse, providing vital processing capabilities for the repurposing of diverse materials.
Eddy Current Separator
The Eddy current separator is an exceptionally efficient device for metal separation and recovery. Utilizing the principle of eddy currents, it generates an eddy current effect through a strong magnetic field to separate non-ferrous metals from mixtures. This equipment is commonly employed in scrap processing, scrap recycling, metal recycling, and resource reuse.
Eddy current separators can effectively identify and separate various types of metals, such as aluminum, copper, and brass, extracting non-ferrous metals from scrap or recycled materials and enhancing the efficiency of metal recycling. Its operating principle involves using eddy currents produced by a rapidly rotating magnetic field to distinguish non-ferrous metals from ferrous materials, creating differences in motion between metallic substances.
Vertical Hammer Crusher
The vertical hammer crusher is an efficient piece of crushing equipment specifically designed for processing scrap metal. Its distinctive vertical structure and powerful hammer head design make it highly effective in the field of scrap metal processing. This equipment employs advanced crushing technology, using a high-speed rotating hammer to powerfully strike and crush scrap metal, achieving efficient crushing and separation.
The vertical hammer crusher excels in processing scrap metal, capable of effectively crushing metal blocks of various shapes and sizes, including scrap auto parts and scrap steel materials. Its height-adjustable discharge port design allows it to accommodate metal scraps of different specifications, offering flexible production configuration options.
