Single Shaft Shredder Machine

The single shaft shredder is a highly efficient waste processing machine designed for the fast and thorough shredding of a wide range of materials, including plastics, paper, textiles, and other waste types. Equipped with a powerful single rotating cutting shaft, this shredder uses high-speed rotation and specially engineered blades to efficiently cut waste into small, manageable pieces, significantly reducing waste volume.

Thanks to its unique design and innovative working principle, the single shaft shredder is an ideal solution for waste management and recycling industries. It not only reduces waste and improves processing efficiency but also helps businesses manage waste more effectively while minimizing environmental impact.

Product Details

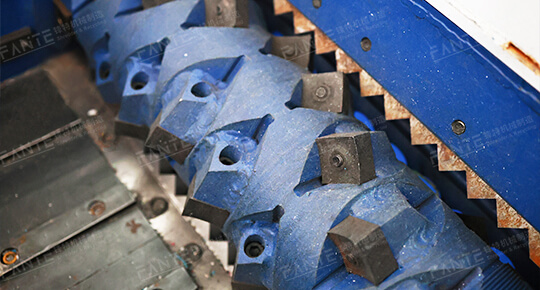

The single shaft shredder cutter shaft adopts advanced machining techniques during production. The blades mounted on the shaft use high-quality imported tool steels such as D2 or DC53, which offer superior hardness, toughness, and wear resistance. These blades maintain sharpness over extended use, providing consistent shredding performance even when processing tough materials.

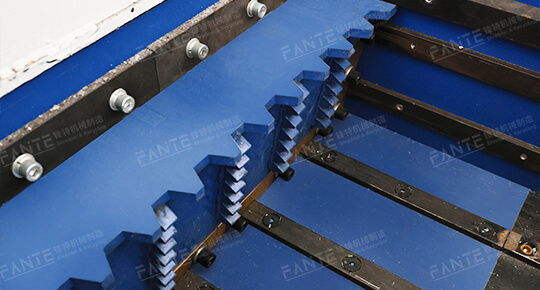

The pushing system applies continuous pressure to the material being shredded, ensuring efficient feeding and consistent contact with the blades. The pusher mechanism incorporates an advanced sealing system that prevents material from escaping the shredding chamber, thereby improving safety and operational cleanliness.

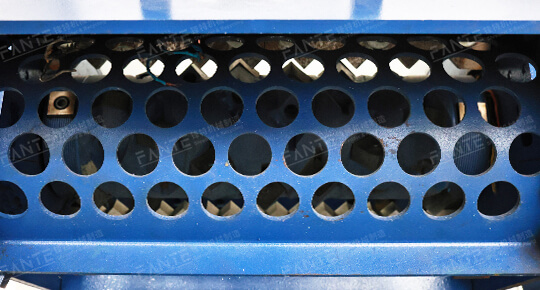

The screen mesh is a vital component that controls the final particle size of shredded material. It is available in various sizes, typically ranging from 30mm to 100mm, and can be tailored to meet specific customer demands. Made from hardened steel, the screen offers excellent abrasion resistance, ensuring longevity despite constant exposure to friction and impact.

Single Shaft Shredder Shredding Effect

Product Parameters

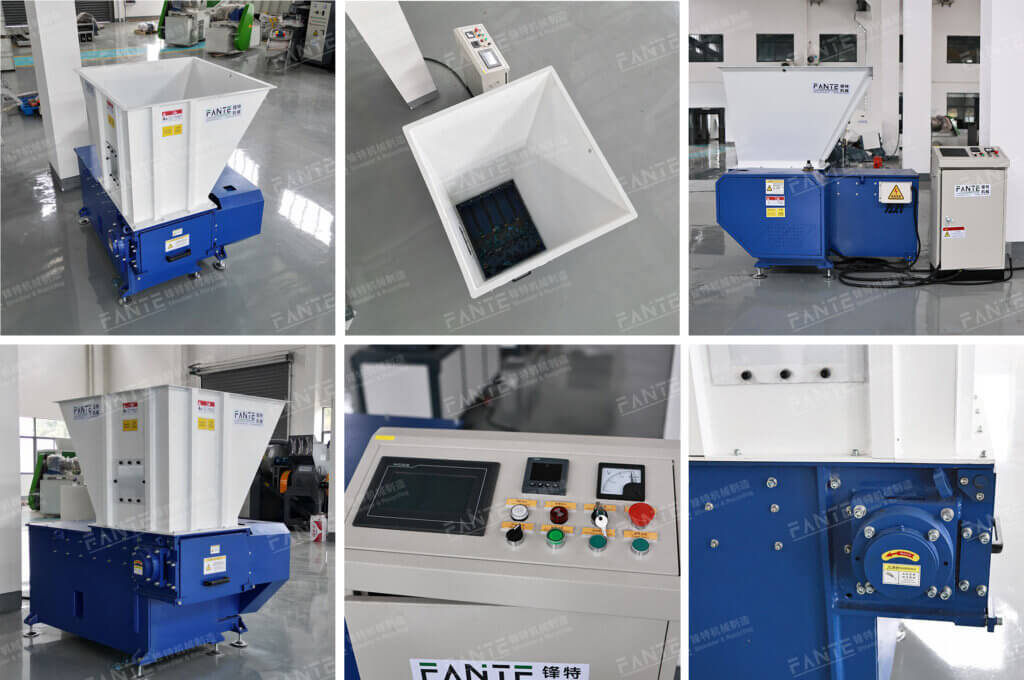

Actual Photos

Frequently Asked Questions

• Why is the capacity of a single shaft shredder lower than that of a double shaft shredder?

A single shaft shredder has a different structure and shredding principle. It usually uses one motor with limited torque and processes materials by cutting and scraping, so the capacity is generally lower than that of a double shaft machine. A single shaft plastic shredder is more suitable for large plastic blocks and soft materials.

• Can a single shaft shredder process solid waste?

It is not recommended to use a single shaft shredder for mixed solid waste. Solid waste may contain metal or hard contaminants, which can damage the blades of a single shaft plastic shredder.

• Can a single shaft shredder be customized with a 10 mm screen?

Normally, the output size of a single shaft shredder is about 30–40 mm. The smallest customizable screen is usually around 20 mm. Screens below 20 mm may reduce discharge efficiency.

• What should I consider when buying a single shaft shredder for sale?

When choosing a single shaft shredder for sale, consider the material type, material size, required capacity, and final output size to ensure the machine matches the recycling application.
