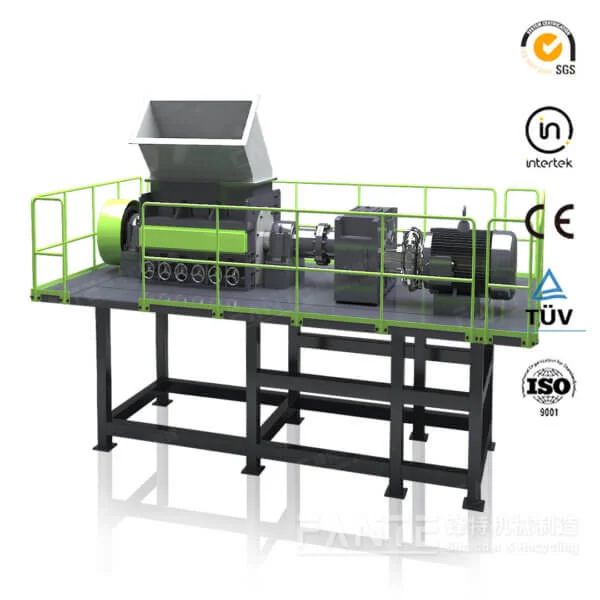

Rasper
Product model: FTRR
Type: Shredding Equipment
Material: Provide customized services, a variety of materials to choose from
Color: Customized service available
Brand: Fante
Product Description
The Rasper is designed for waste tire recycling and is the key equipment in the whole tire recycling production line. It can crush the pre-treated tire rubber blocks into 10-30mm particles, and at the same time separate the steel wire and rubber with high efficiency, creating double economic benefits for users.
Product Advantage
- High Wear Resistance
- The rotor is crafted from high-strength, wear-resistant materials, ensuring an extended service life and reduced maintenance costs.
- Flexible Production
- Equipped with multiple screen options of varying apertures, allowing for adjustable output sizes ranging from 10mm to 30mm to meet diverse needs.
- Convenient Maintenance
- Replaceable blades and screens minimize downtime and enhance operational efficiency.

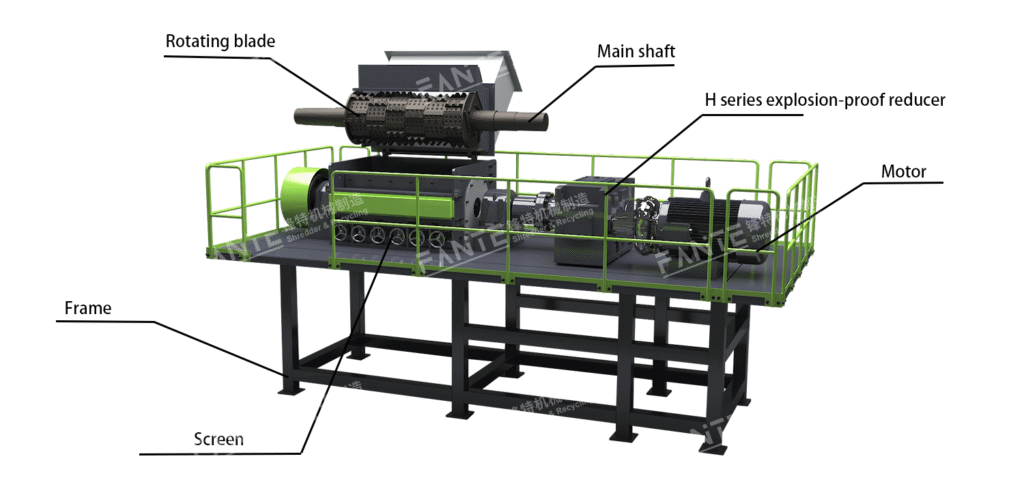

- Intelligent Structural Design
- The internal wear liners are easy to replace, eliminating the need for maintenance welding and significantly increasing machine uptime.
Product Parameters
| Model | FTRR-315 | FTRR-135 | FTRR-90 | FTRR-75 |
| Power | 315kw | 135kw | 90kw | 75kw |
| Voltage | as per request | |||
| Cutting Chamber | 700*1500mm | 640*1200mm | 550*1000mm | 550*800mm |
| Dimension | 6220*2170*3560mm | 4110*2010*2560mm | 4100*2090*2180mm | 4100*1990*1980mm |
| Weight | Approx 24000kg | Approx 13500kg | Approx 9200kg | Approx 8500kg |
| Hopper Opening | 1730*880*910mm | 1410*910*1410mm | 1190*710*1250mm | 980*700*1260mm |
| Final Product | 10-30mm | |||

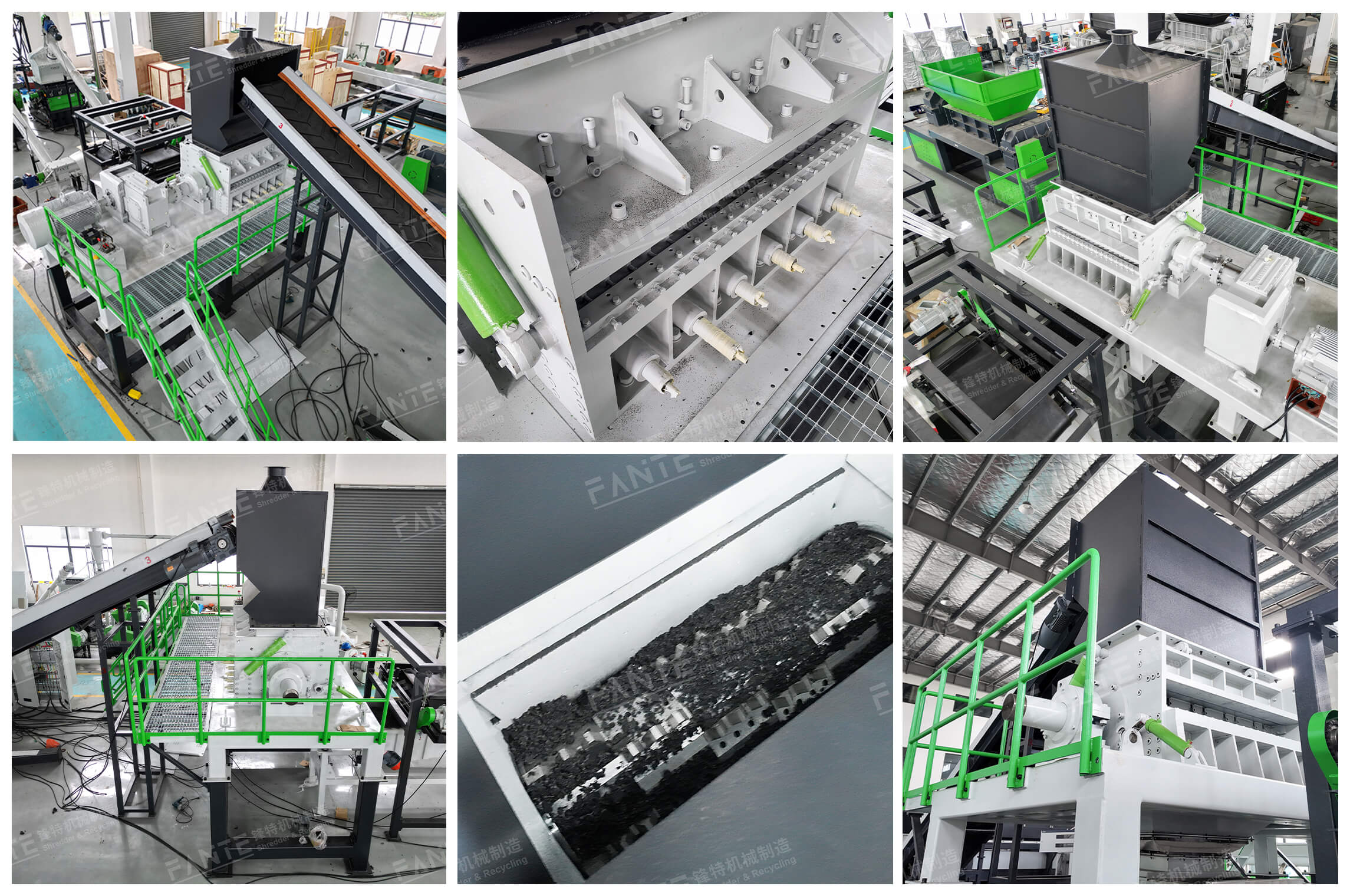

Product Actual Pictures
 |
 |
Successful Cases
Material Disposal
SCRAP TIRES
METAL WASTE
WASTE PLASTICS
E-WASTE
WOODEN WASTE
CABLES
INDUSTRIAL HAZARDOUS WASTE
