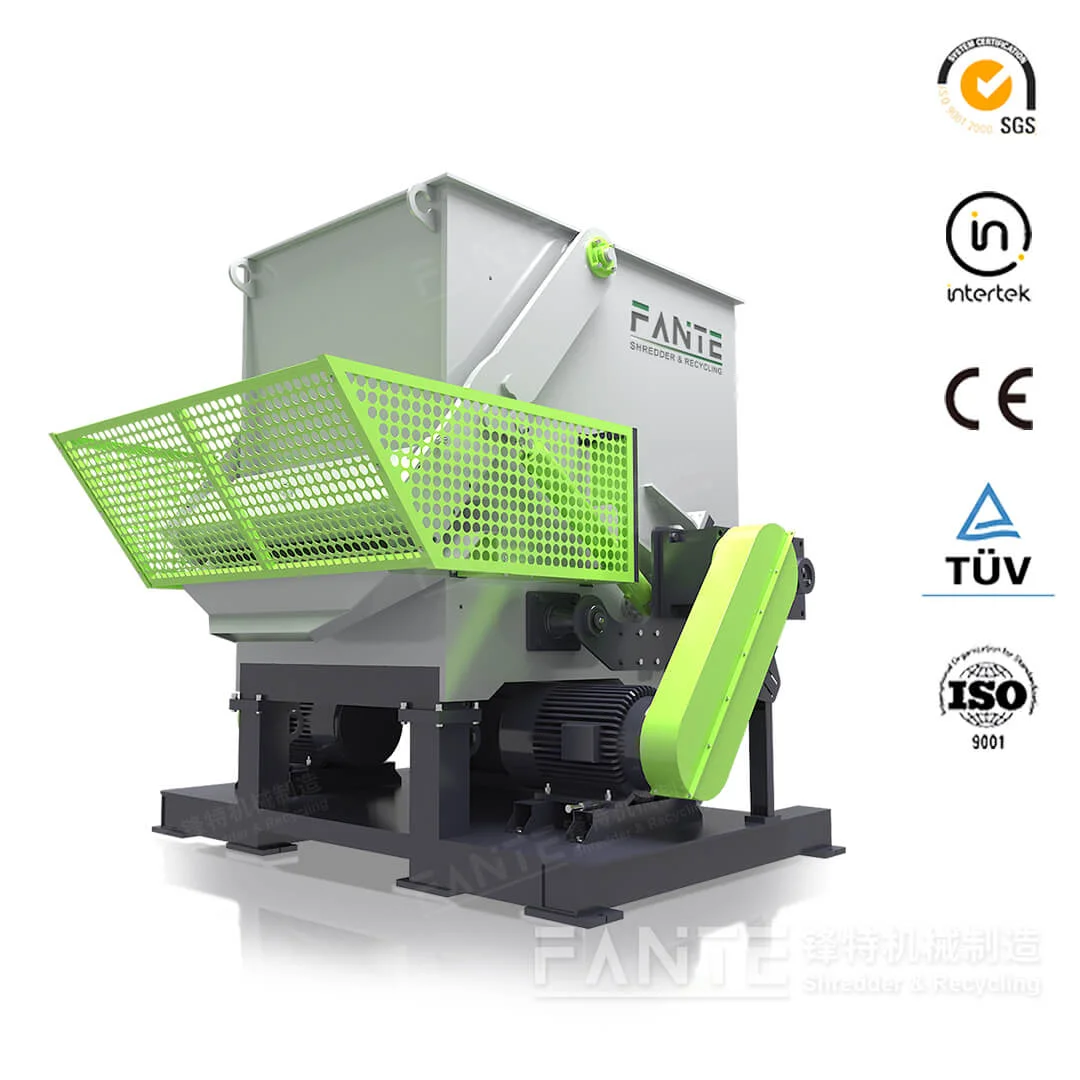

Heavy Duty Single Shaft Shredder

Product model: FTHSS



Type: Single Shaft Shredder



Material: Provide customized services, a variety of materials to choose from



Color: Customized service available



Brand: Fante

Heavy Duty Single Shaft Shredder

The single-shaft shredder is an efficient waste processing equipment specially designed to shred all kinds of waste, plastic, paper, metal, and other materials quickly and thoroughly. This shredder uses a single powerful rotating cutter shaft. Professionally designed blades, combined with high-speed rotation, cut waste materials into controllable, small pieces, effectively reducing overall waste volume. Its unique design and innovative working principle make the single-shaft shredder ideally suited for the waste treatment and recycling industry. Not only can it reduce waste and improve waste processing efficiency, but it can also help businesses manage waste more effectively and minimize their environmental impact.



Product Description

Heavy duty single shaft shredder reducer

The heavy duty single shaft shredder reducer functions as a key mechanical transmission device that lowers the output speed of the driving unit—typically an electric motor—while increasing torque output. It plays a crucial role in industrial and mechanical applications by delivering reliable power transmission and precise control across a wide range of systems. Precision gears and a high-quality bearing system ensure smooth operation and efficient energy transfer.

Heavy duty single shaft shredder blade









Heavy duty single shaft shredder spindles and blades serve as critical industrial components in various rotating equipment and mechanical systems. Shafts typically feature elongated metal rods that connect rotating parts, transmit power, and support mechanical loads. Blades are flat or curved structures attached to a shaft and are key components responsible for generating propulsion or fluid flow when rotating.



Heavy duty single shaft shredder push system

Push systems play a key role in industrial automation, conveying, and material handling. Industries widely apply them in logistics, production, and warehousing operations. The main function of this system is to push objects to move in designated directions through mechanical or electric devices to achieve fast and accurate material transportation and processing. The design of a propulsion system can include various elements such as transmissions, guide rails, sensors and control systems.

Heavy duty single shaft shredder screen





Screens are key components for screening and filtering materials. The main function of this product is to separate raw materials into particles of different sizes according to the required particle size to meet production and processing requirements. Screen designs typically use high-quality wire or synthetic materials that are precision woven, welded, or perforated to create screens with specific screen sizes and shapes.

Shredding Effect

Single shaft shredder shredding effect

Product parameters



Model FTHSS-1500 FTHSS-2000 FTHSS-2200
Dimensions (mm) 3710*2880*2530 3710*4150*2530 3920*4500*2720
Hopper Opening (mm) 2080*1880 2080*2380 2380*2580
Discharging Height (mm) 720 720 720
Rotation Diameter (mm) Φ480 Φ480 Φ650
Speed (rpm) 80 80 80
Number of Knives (PVC) 84+6 95+6 109+6
Number of Fixed Knives (PVC) 3+3 4+4 4+4
Operation Length (mm) 1500 2000 2240
Main Power (kw) 90 55+55 90+90
Hydraulic Power (kw) 7.5 11 15
Weight (kg) Approx 11110 Approx 14800 Approx 18000

Product physical pictures



Successful Cases

Material Disposal

SCRAP TIRES

METAL WASTE

WASTE PLASTICS

E-WASTE

WOODEN WASTE

CABLES

INDUSTRIAL HAZARDOUS WASTE

PAPER & CLOTH & GLASS

MUNICIPAL SOLID WASTE

MEDICAL WASTE & ORGANIC WASTE
