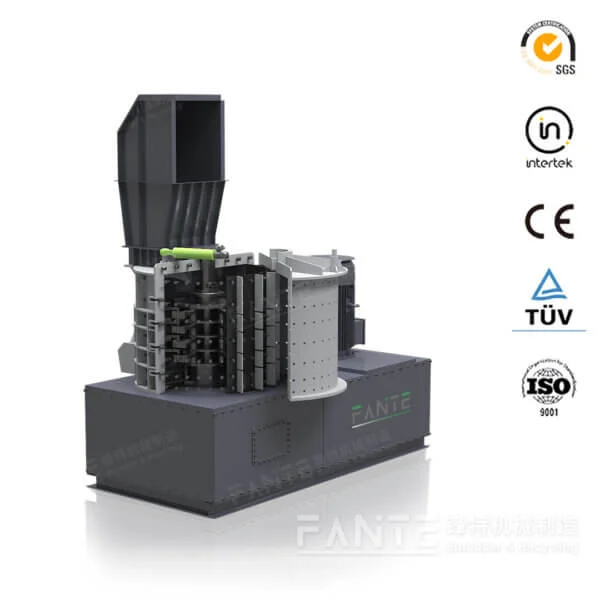

Vertical Hammer Crusher

Product model: FTHC-V

Type: Hammer Crusher

Material: Provide customized services, a variety of materials to choose from

Color: Customized service available

Brand: Fante

Vertical Hammer Crusher

Vertical Hammer Crusher is a high-efficiency crushing machine designed specifically for processing various types of scrap metal, including aluminum, iron, copper, and other metal waste. This machine combines cutting, striking, grinding, and crushing in one integrated unit, enabling it to reduce bulky materials into uniform particles in a short time.

Product Description

Heavy-Duty Structure: Built with a vertical rotor system and wear-resistant hammer heads, ensuring stable performance and long service life. The machine utilizes a vertical shaft and hammer impact principle to perform continuous multi-stage crushing for higher efficiency.

Hammer heads used in the Vertical Hammer Crusher are designed for reversible use, effectively doubling their service life and minimizing downtime caused by wear. Made from high-strength, wear-resistant alloy steel, these hammer heads deliver consistent performance even under heavy-duty crushing conditions.

Operators can adjust the discharge size of the crushed material to meet various downstream processing or recycling requirements.

Vertical Hammer Crusher Application

Product Parameters

Model	FTHC-V-1500	FTHC-V-3500	FTHC-V-6000
Dimensions (mm)	3300*380035000	530046506450	550047506600
Rotating Speed(rpm)	680	540	500
Chambe Diameter (mm)	1140	1560	1680
Chamber Height (mm)	1680	1785	1890
Number of Brakers (pcs)	2	2	2
Number of Rings (pcs)	36	64	64
Number of Linners(pcs)	12+12	12+12	12+12
Main Power(kw)	110	132+132	220+220
Hydraulic Power(kw)	1.5	2.25	2.25
Weight (kg)	About 14500	about 30,000	About 45,000
